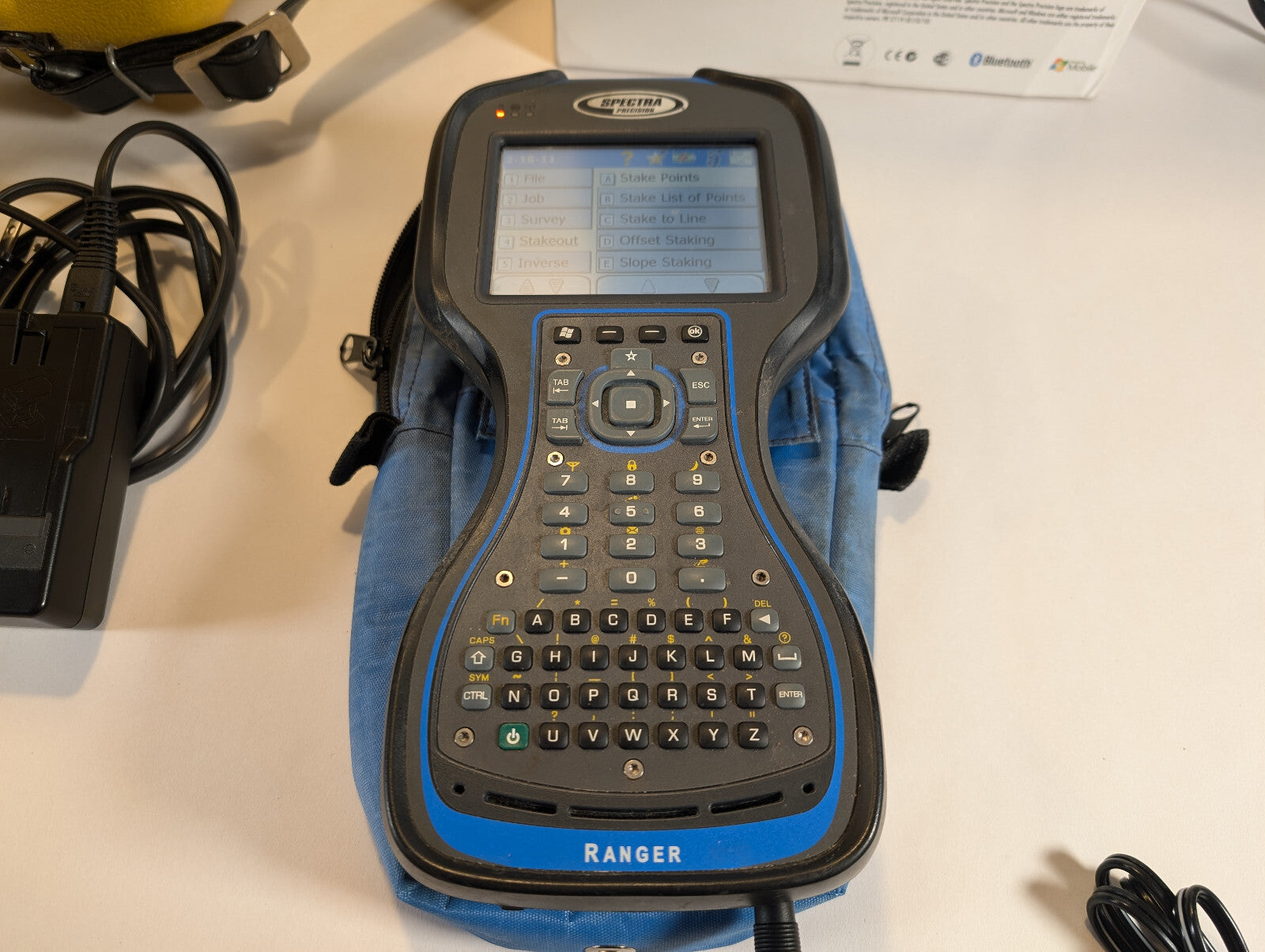

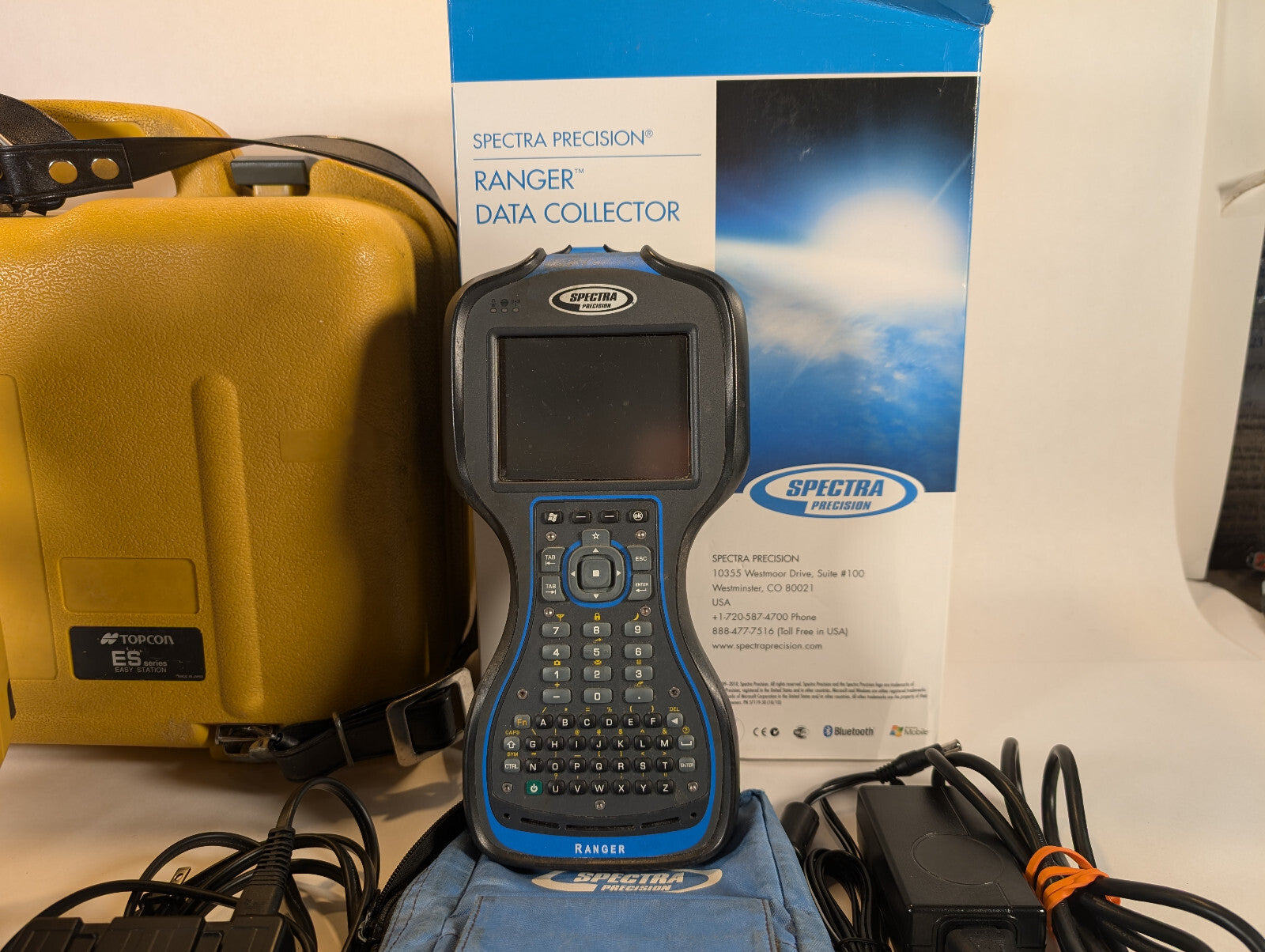

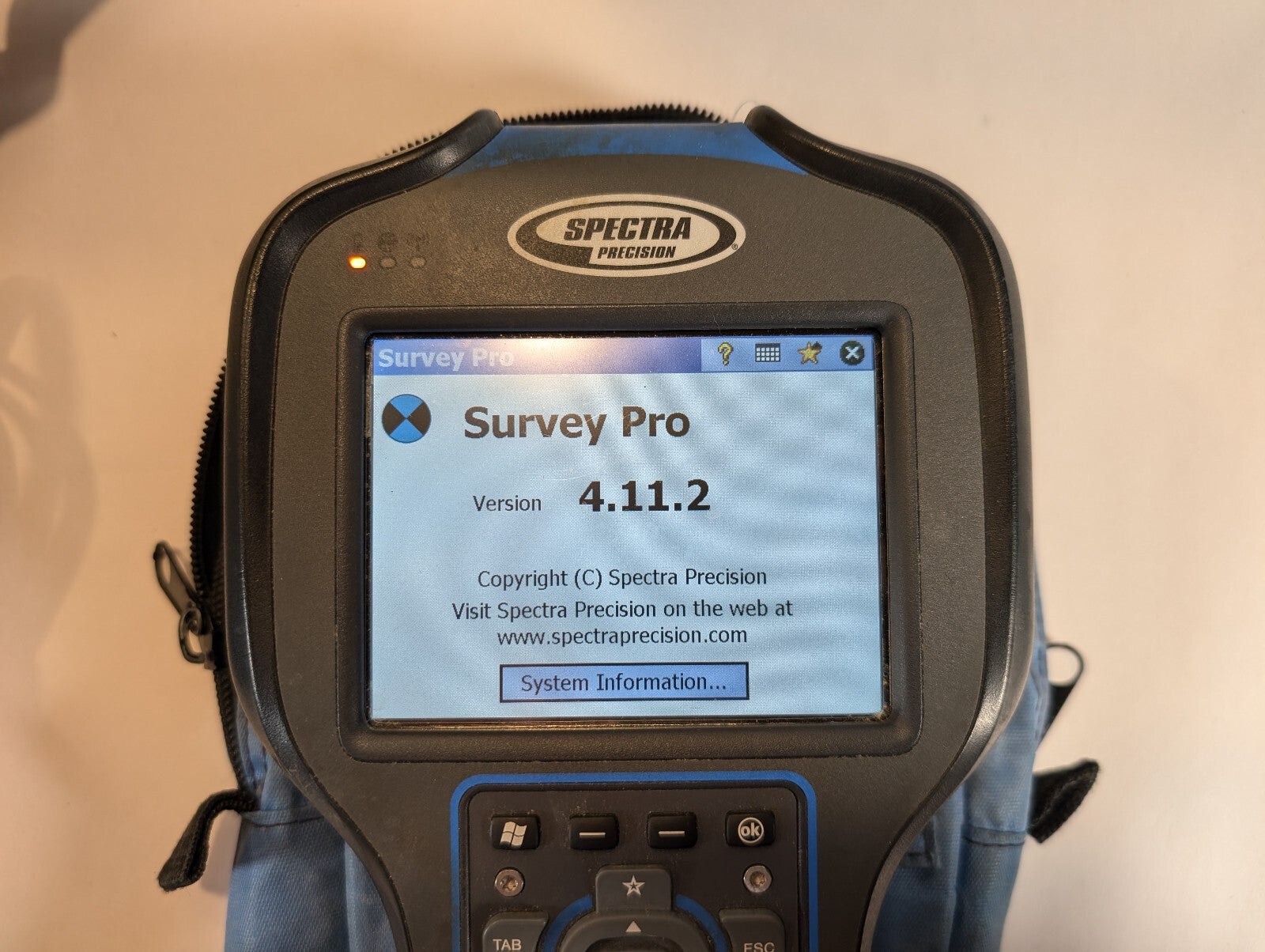

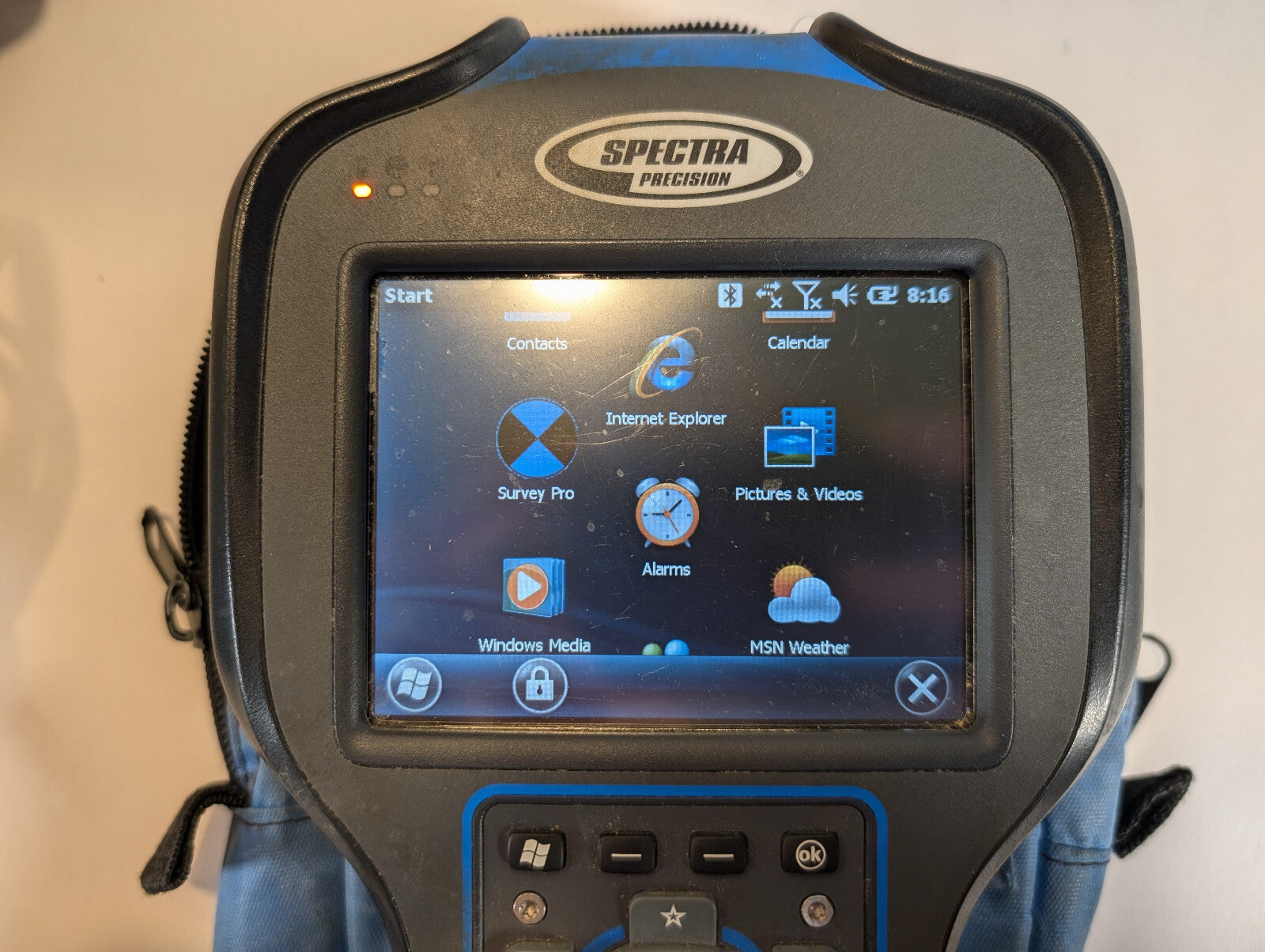

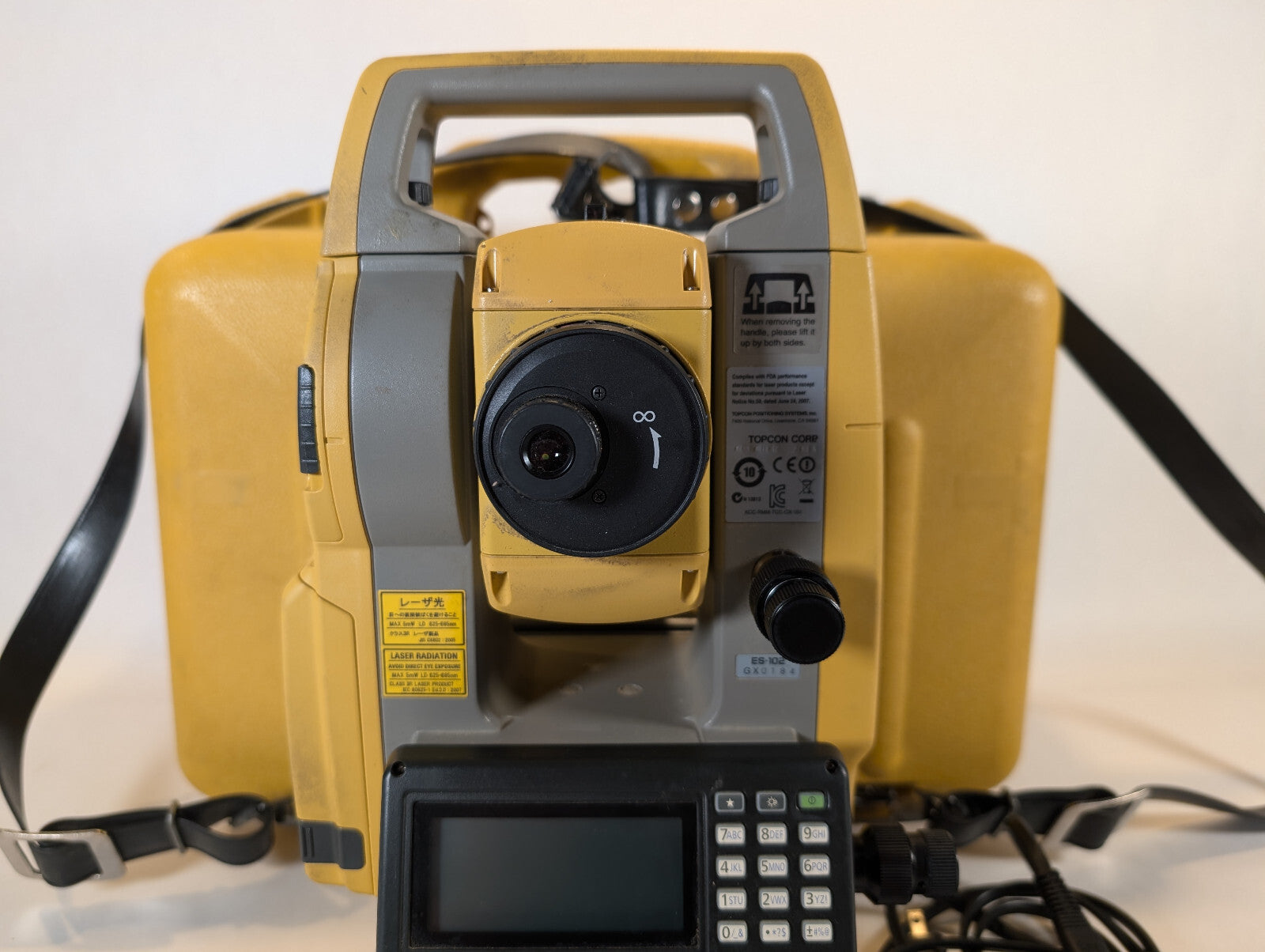

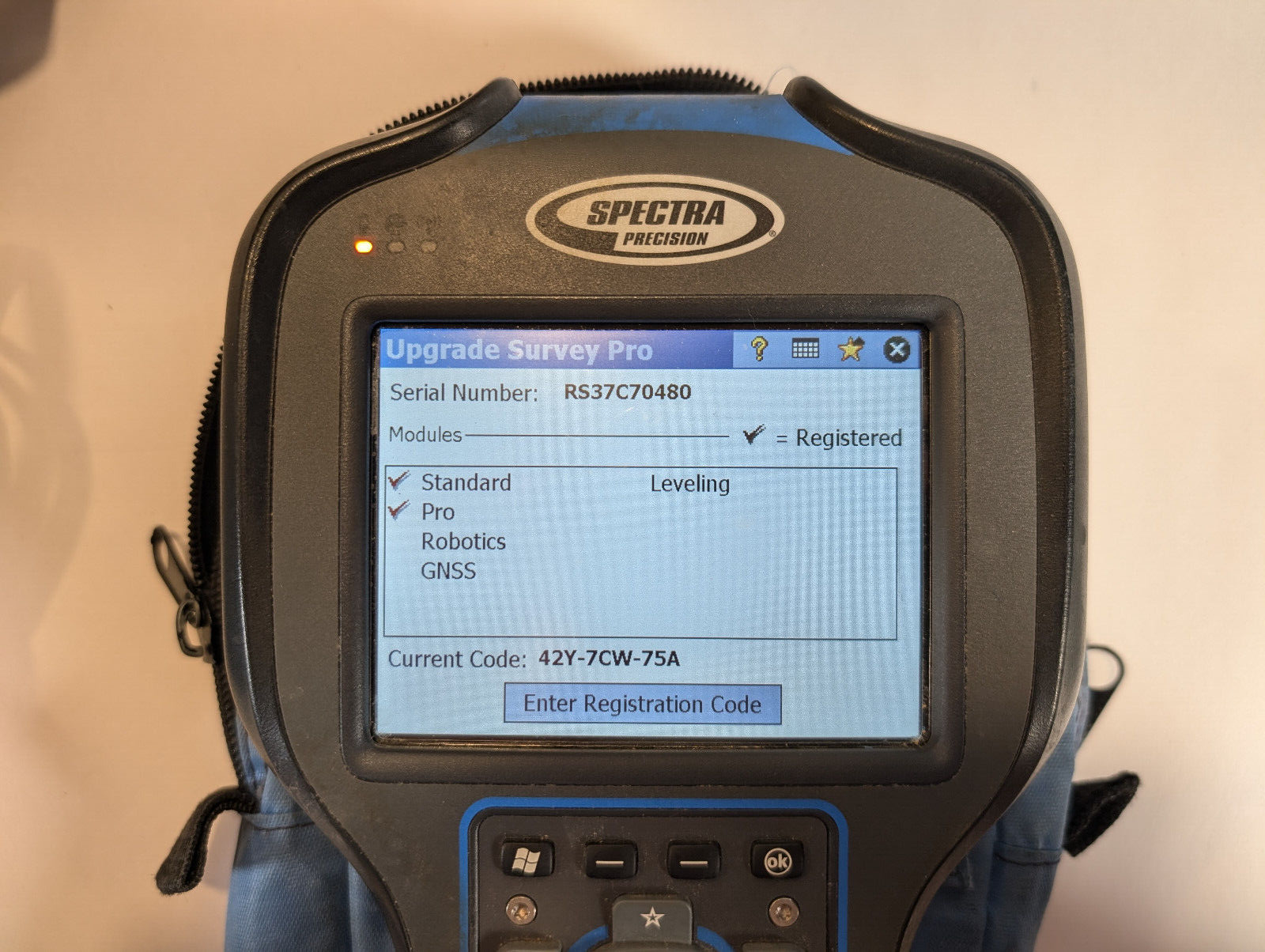

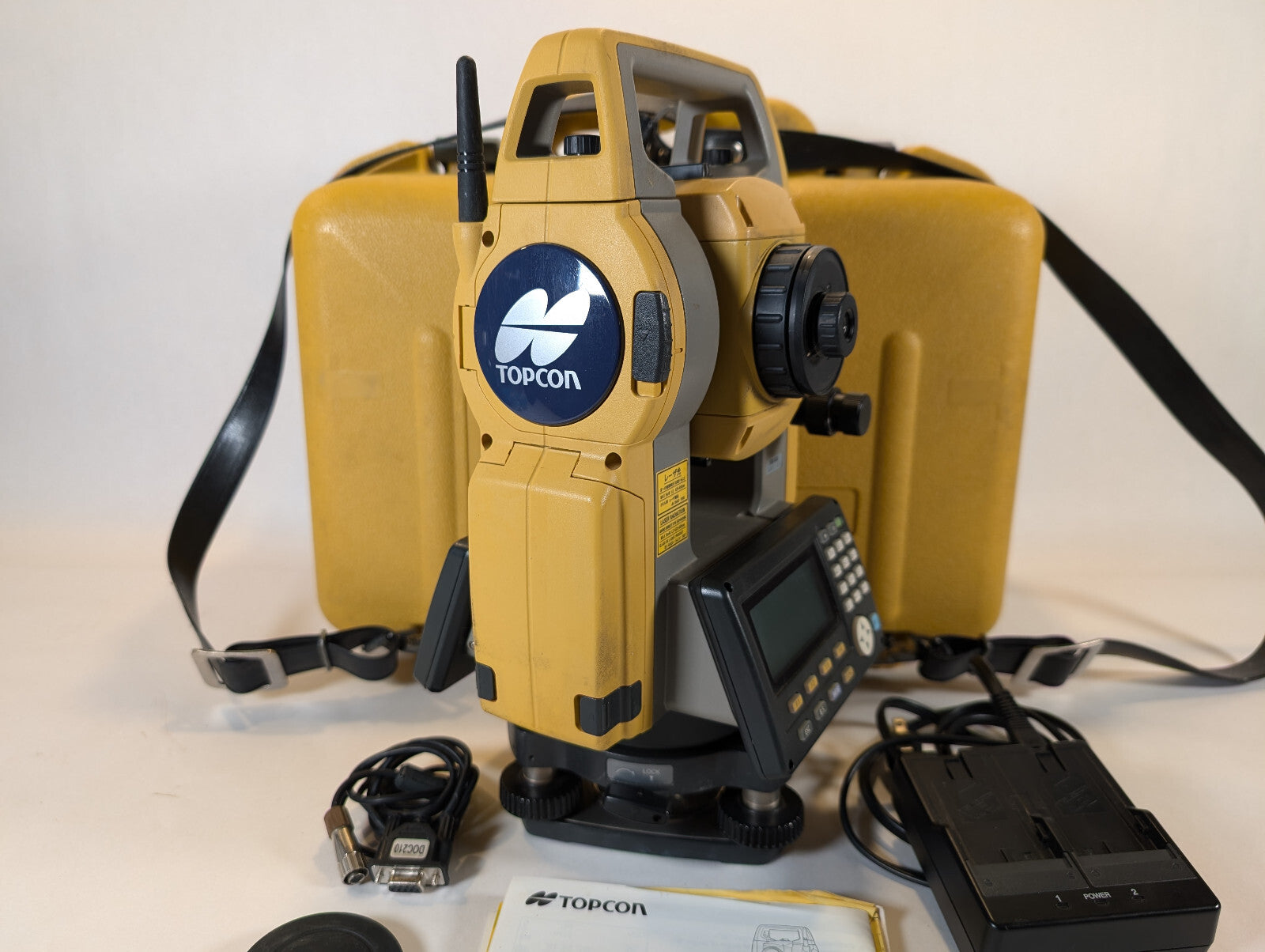

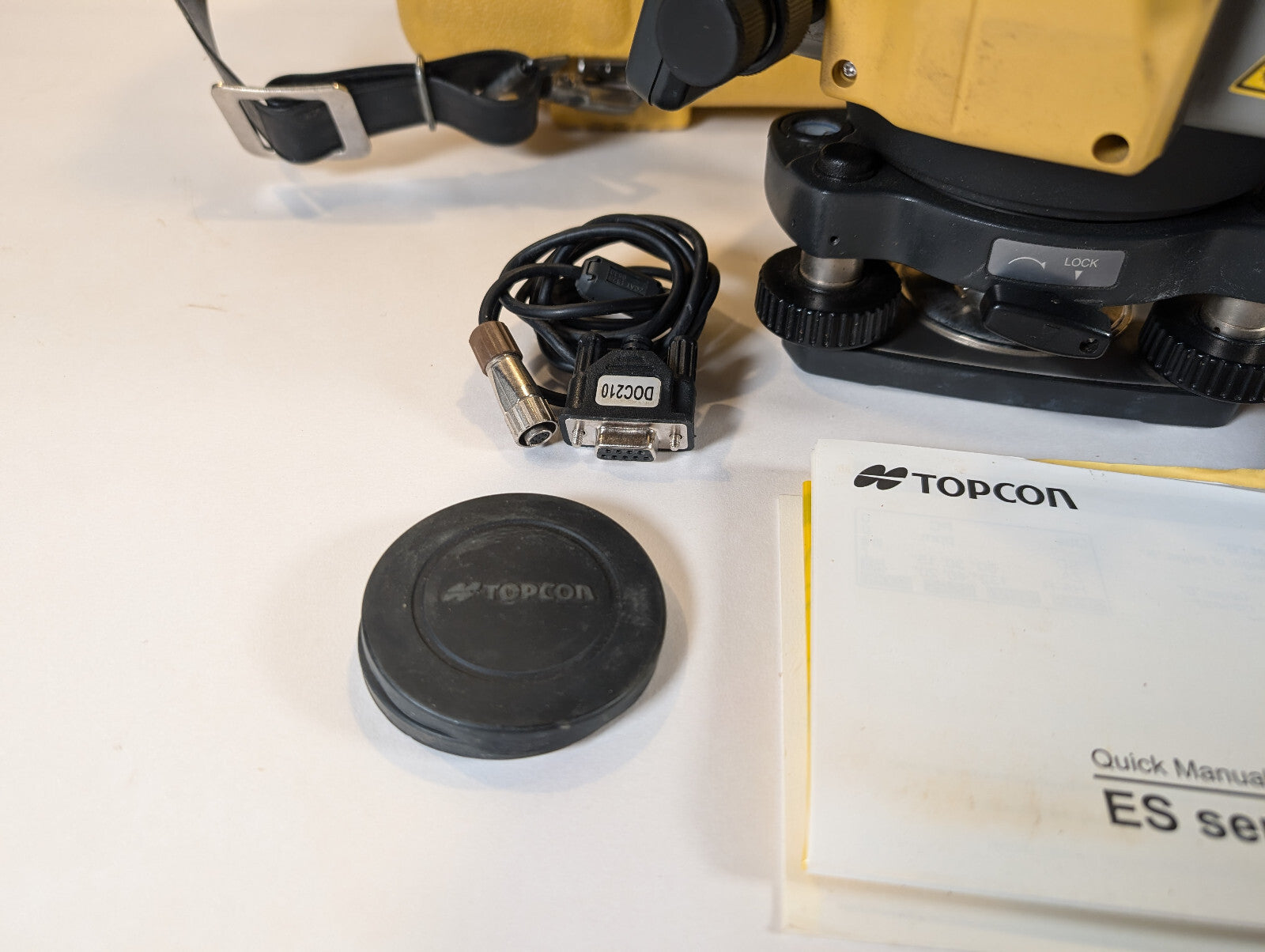

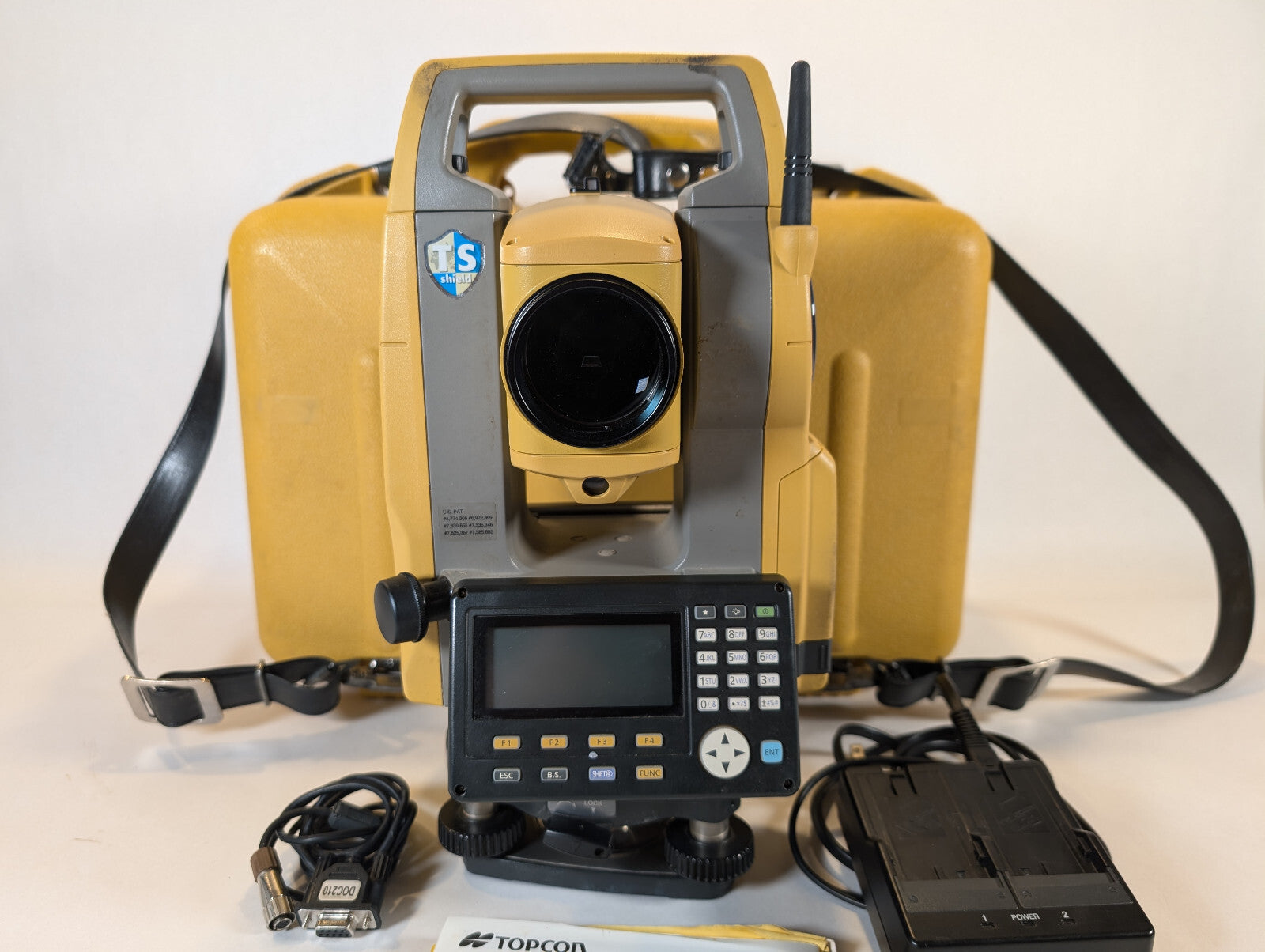

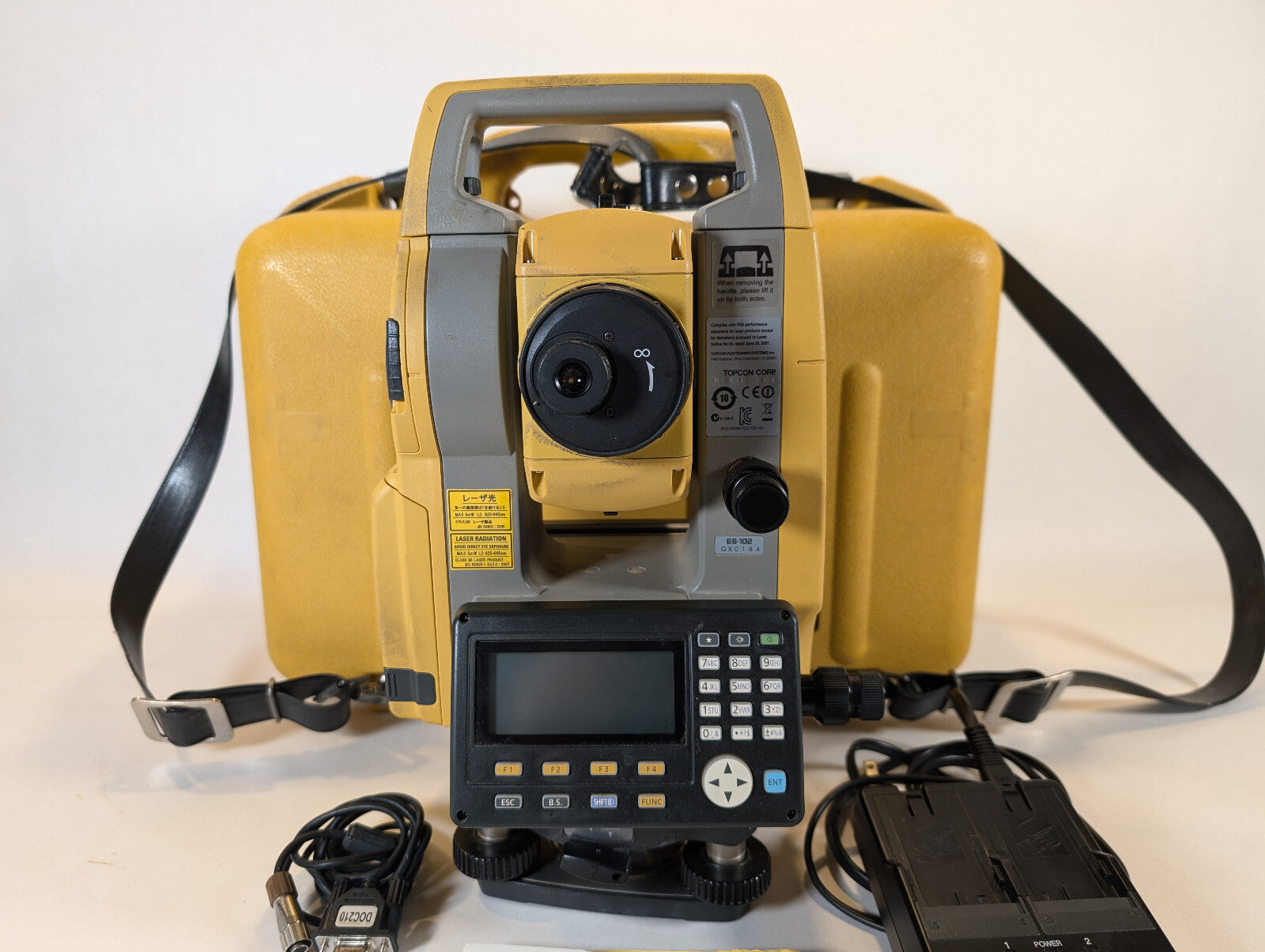

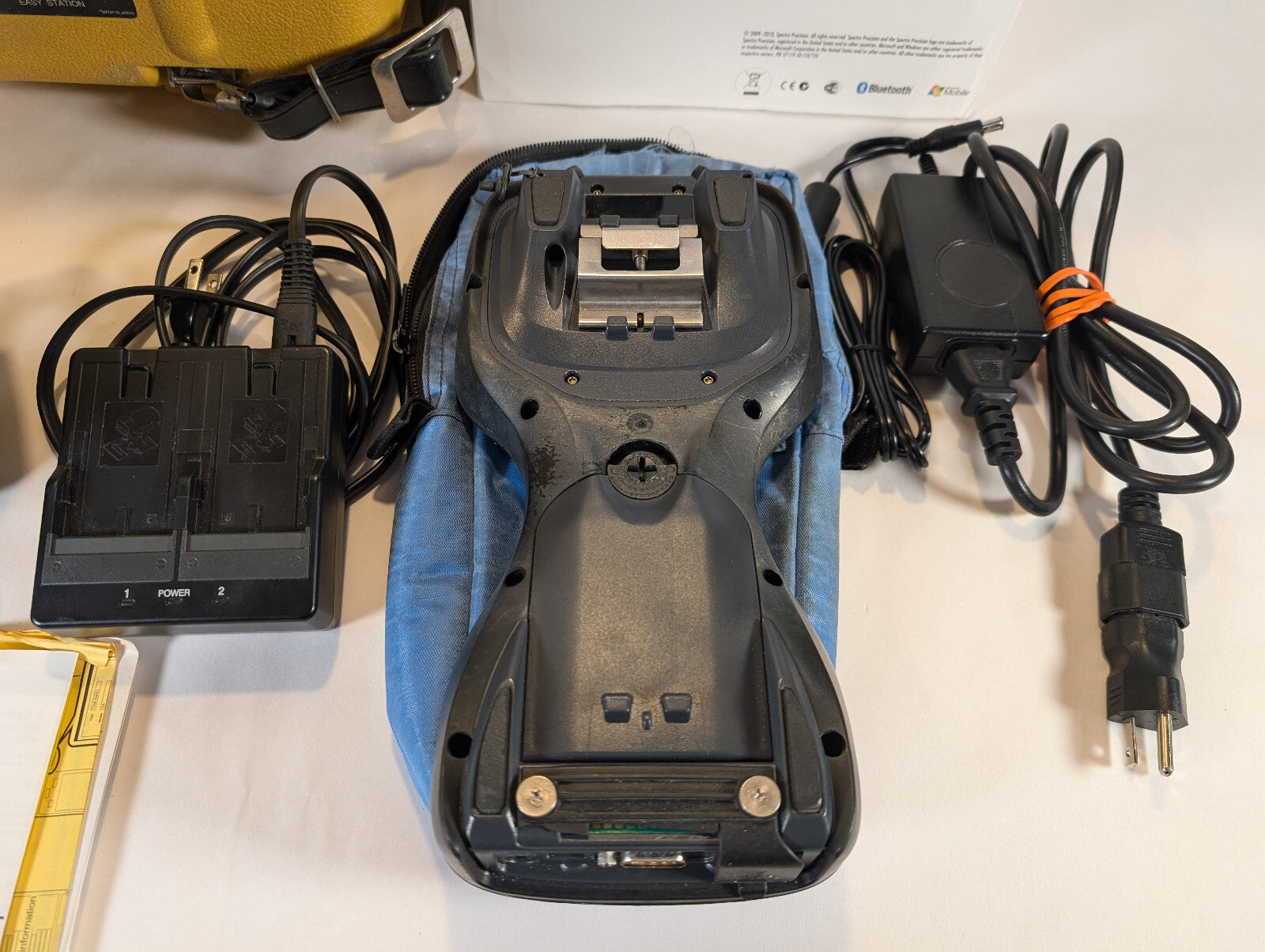

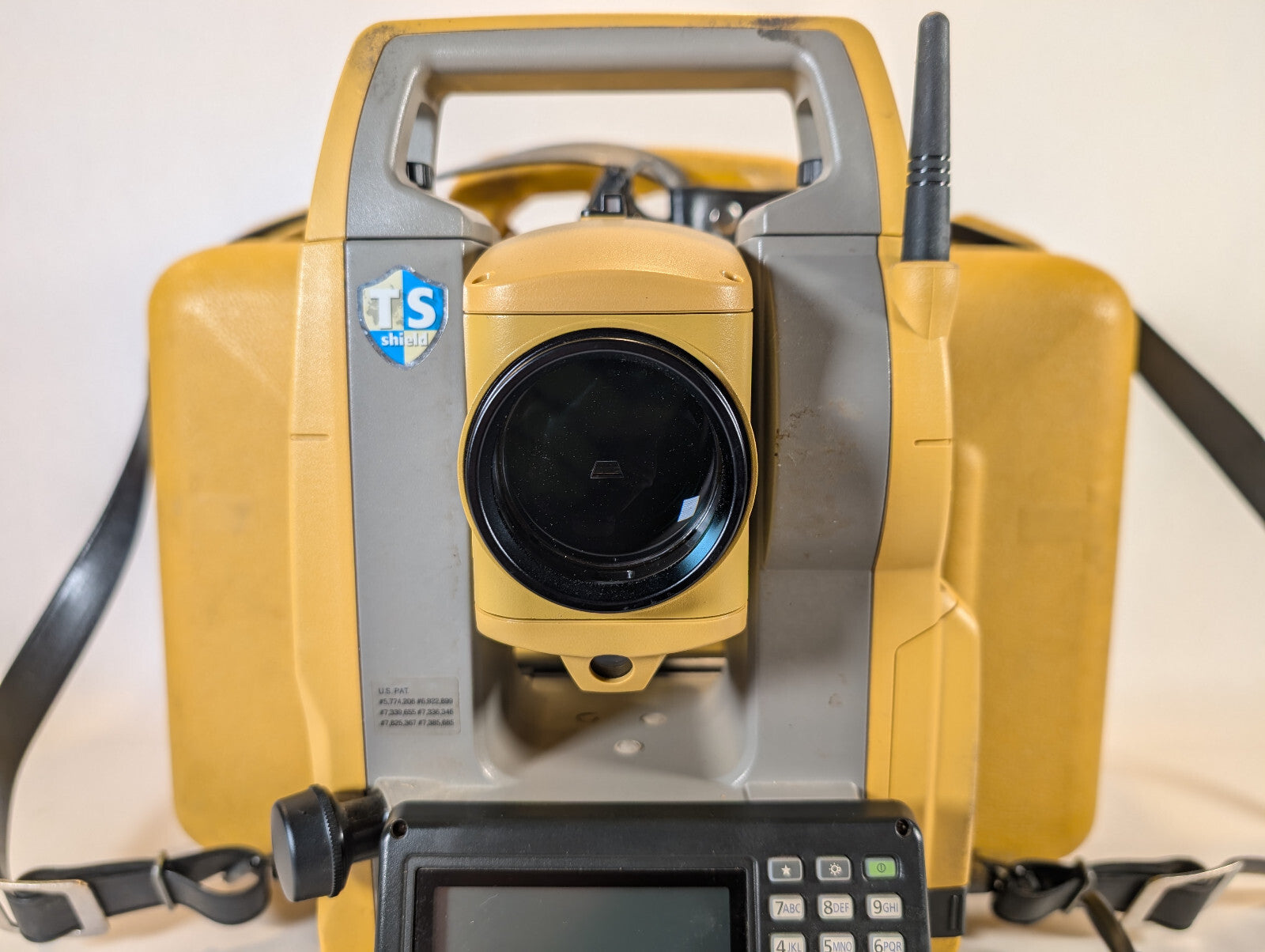

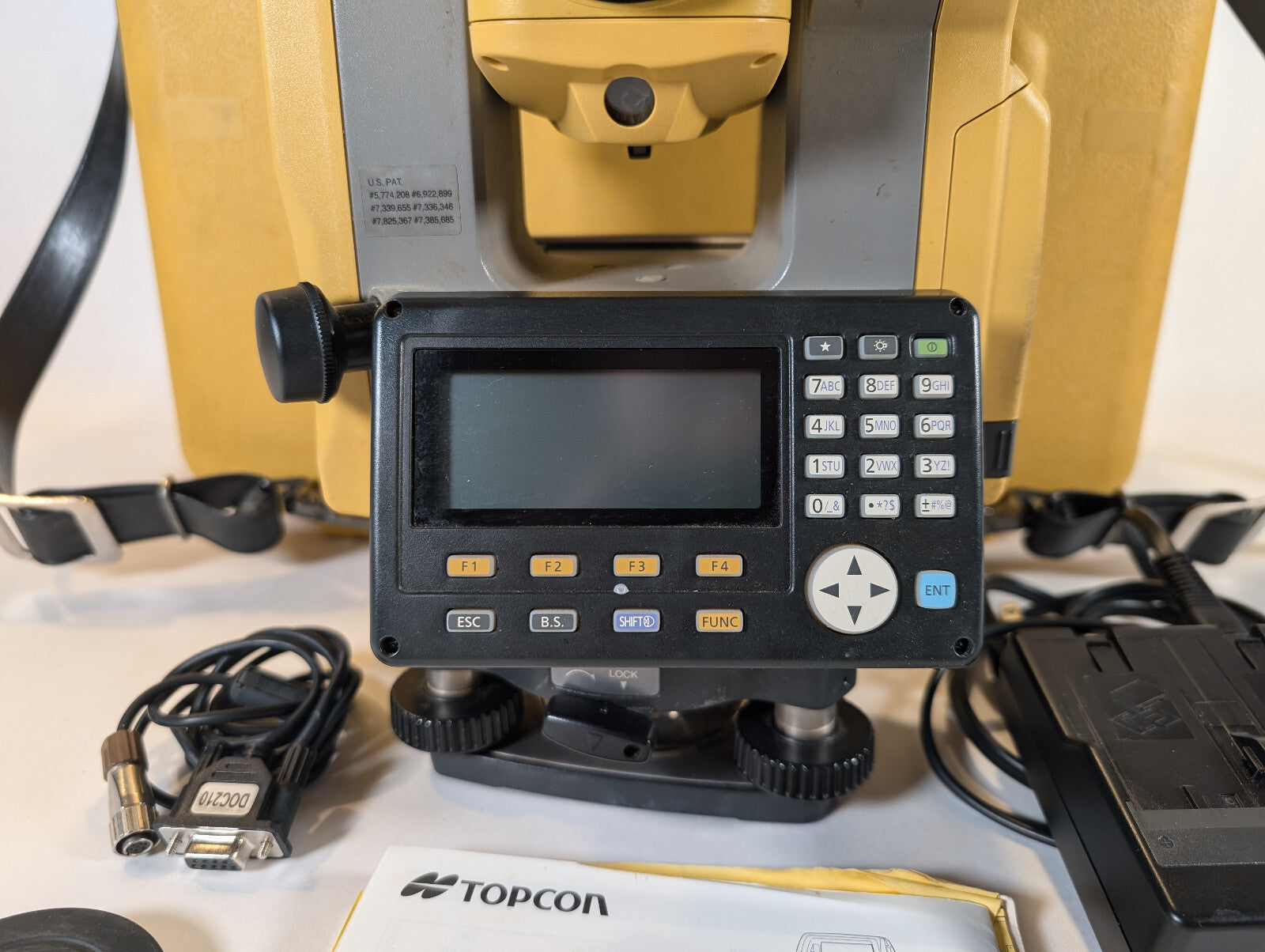

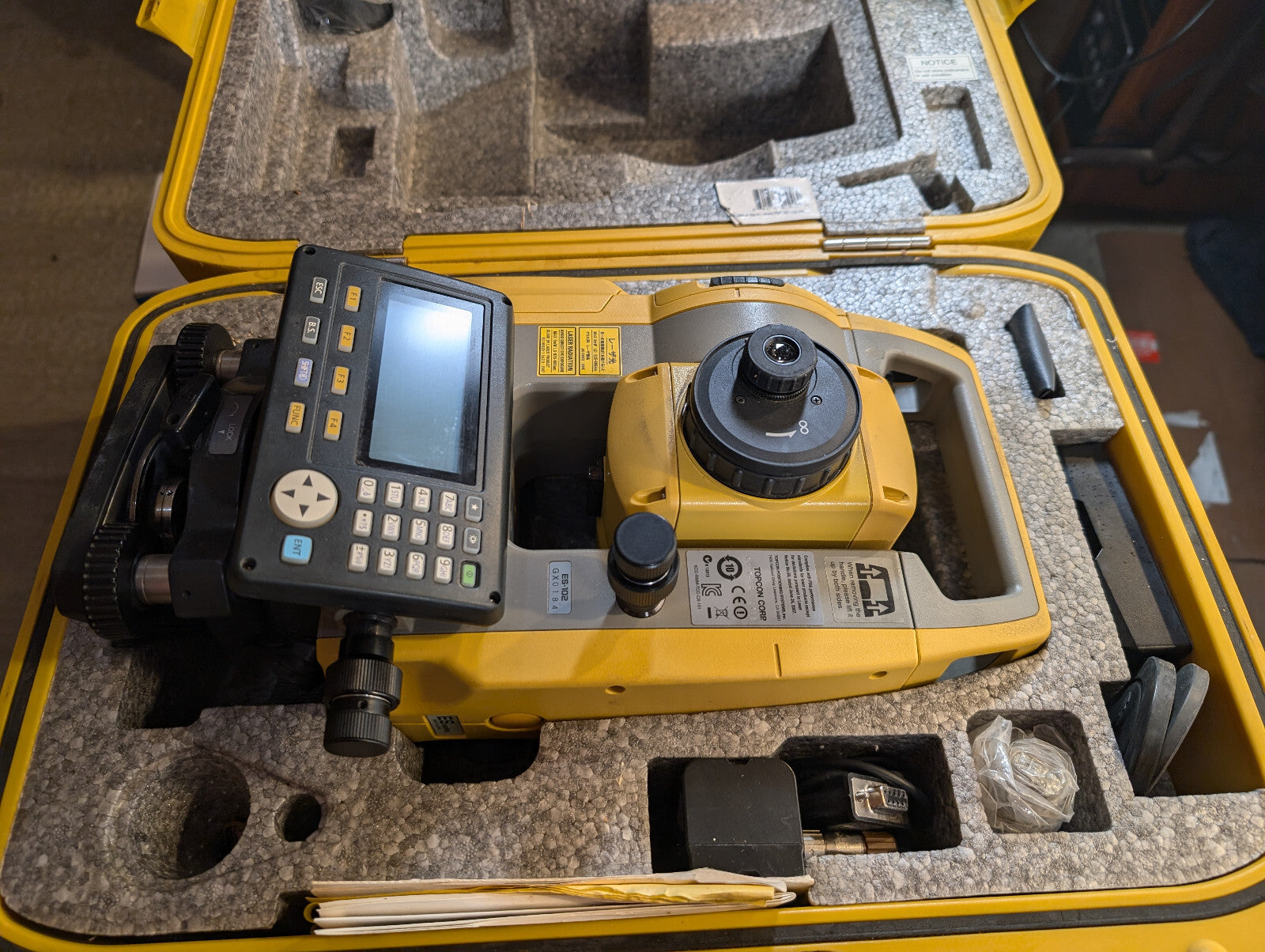

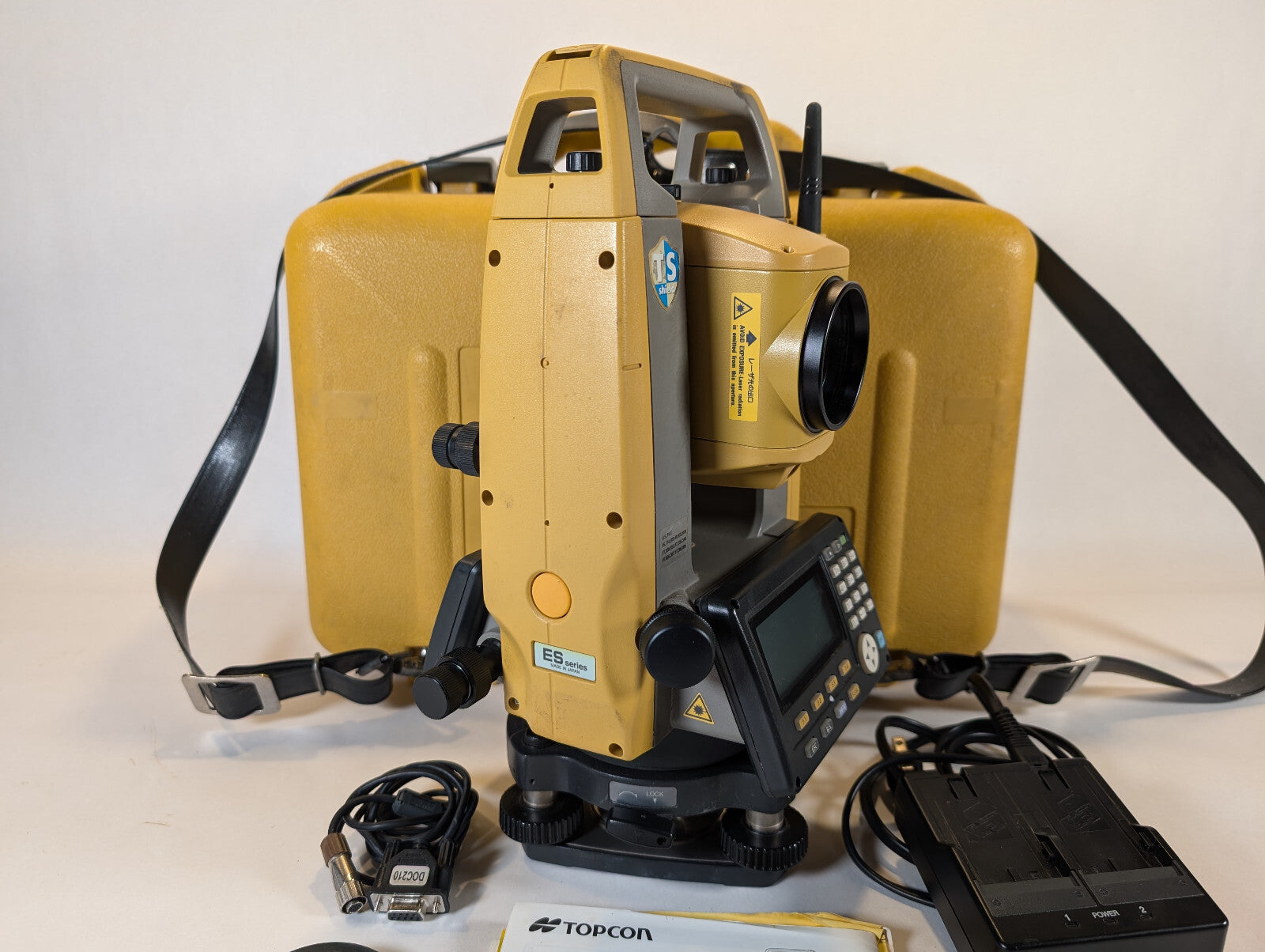

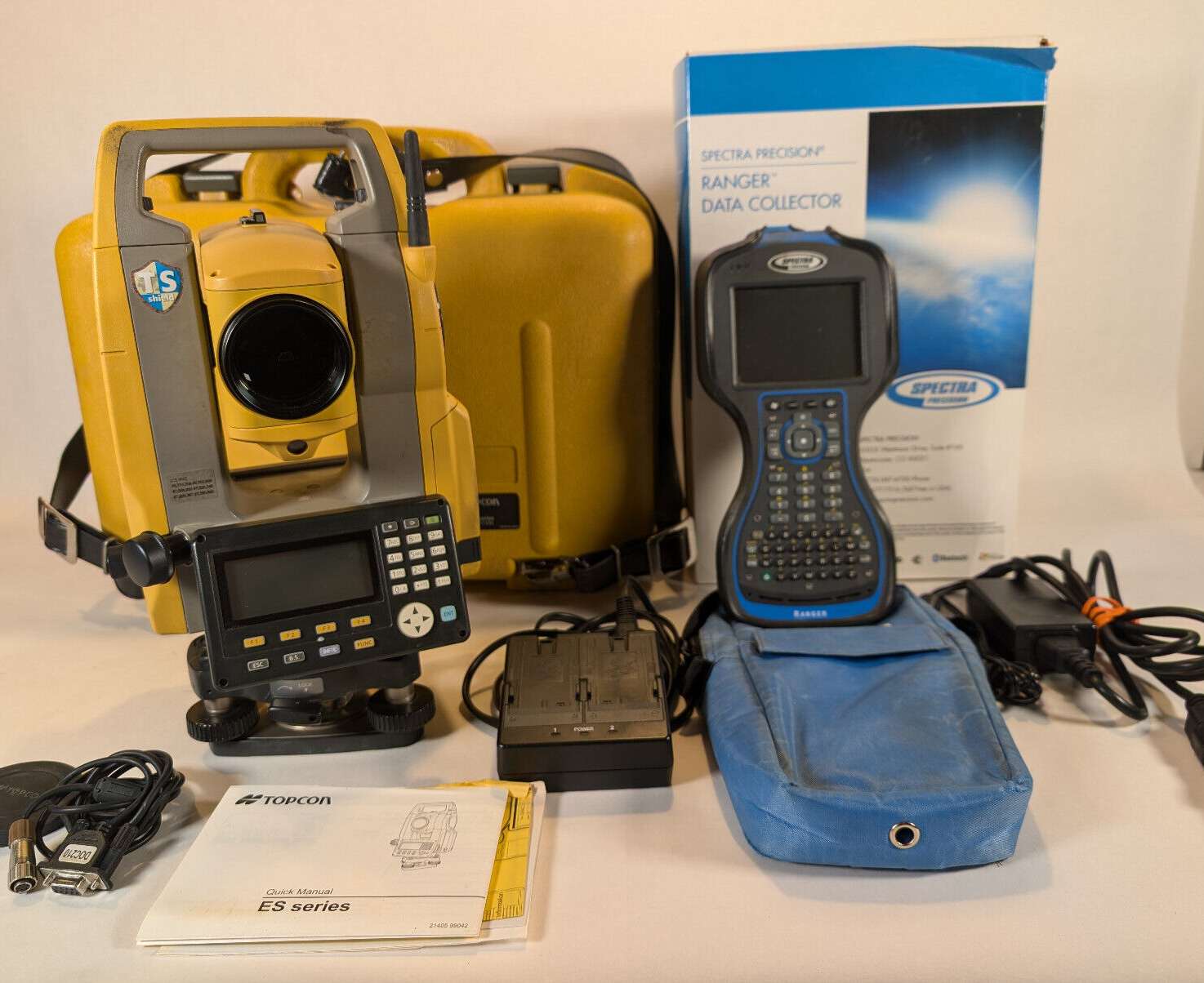

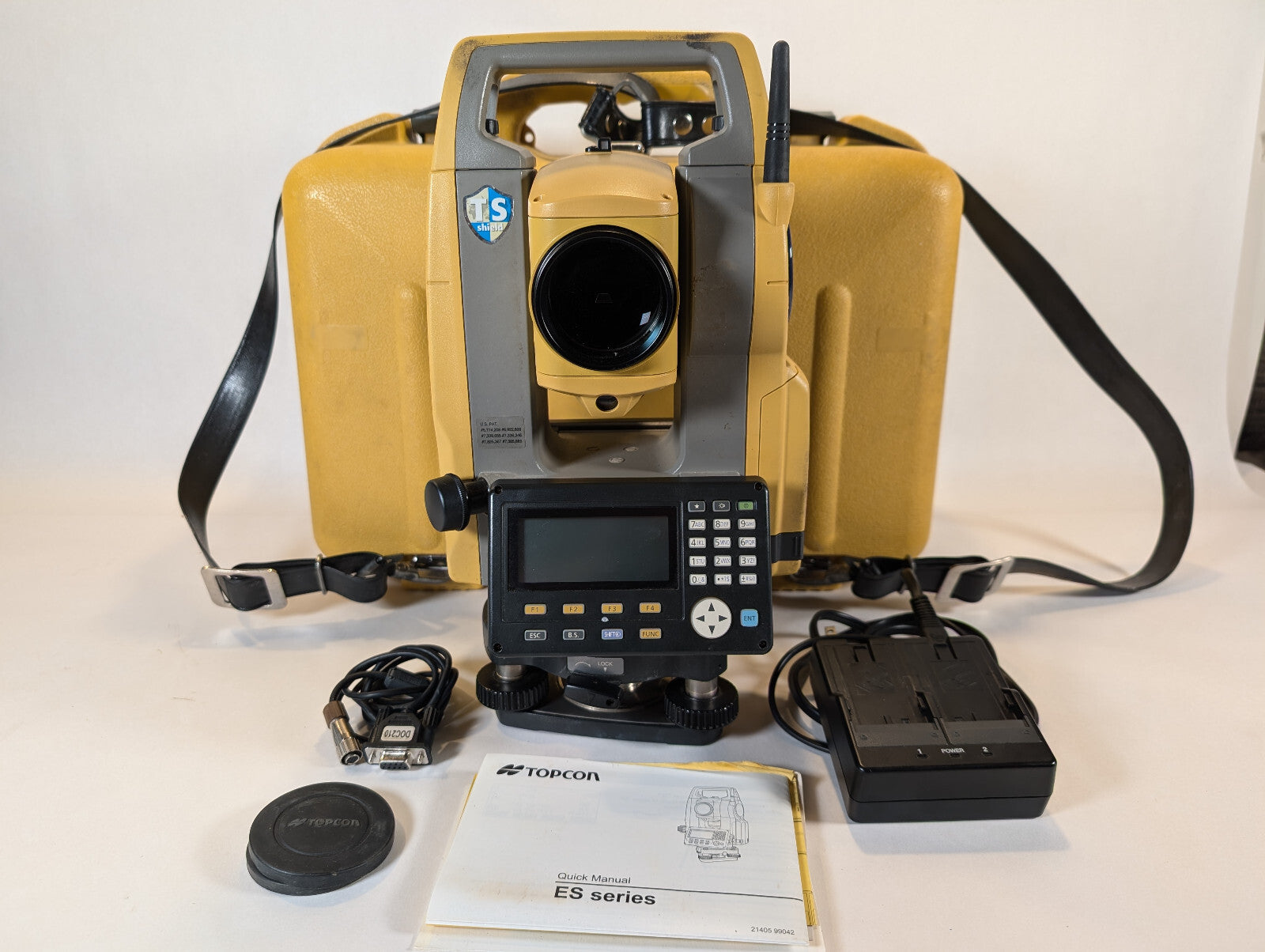

Topcon ES-102 2" Reflectorless Total Station with TSC3 Survey Pro
A New Classic:
• Fast & Powerful Reflectorless EDM
• LongLink Data Communication*
• Advanced Angle Accuracy
• The Longest Battery Life -36 Hours!
• Rugged and User-friendly Design
Fast and Powerful Reflectorless EDM
• Fast and accurate pinpointing with phase shift technology.
• Fast distance measurement of 0.9s regardless of object.
• Minimum reflectorless measuring distance - just 30cm.
• Improved collimation with super-bright laser pointer.
• Smaller EDM beam spot size for minimal distance measuring error.
• Dependable measurement even at shallow incidence angles.
• Ensures accurate reflective sheet distance measurement.
operation and powerful features.
LongLink Data Communication
• Bluetooth® Class1 realizes long-distance and stable connection.

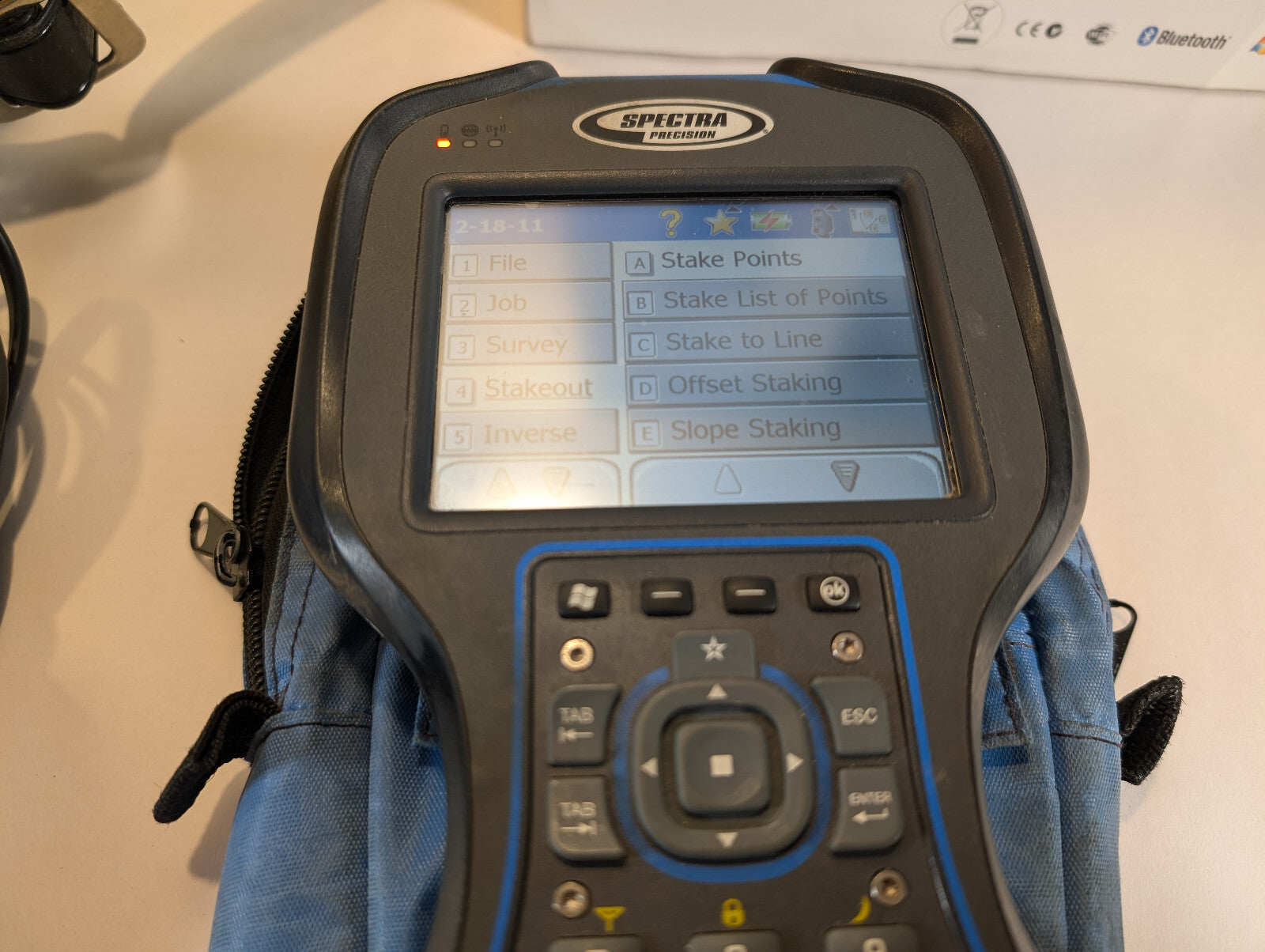

• Link between total station and rover-end data collector, both equipped with Bluetooth Class1, facilitates quick surveying only by sighting the object
More Superior Features
• USB Type A port for convenient data transfer. Use of included USB accessory assures IP66 protection. • Star key [ ] instantly brings up functions.
• Trigger key lets you take a series of measurements without taking your eye off the telescope.

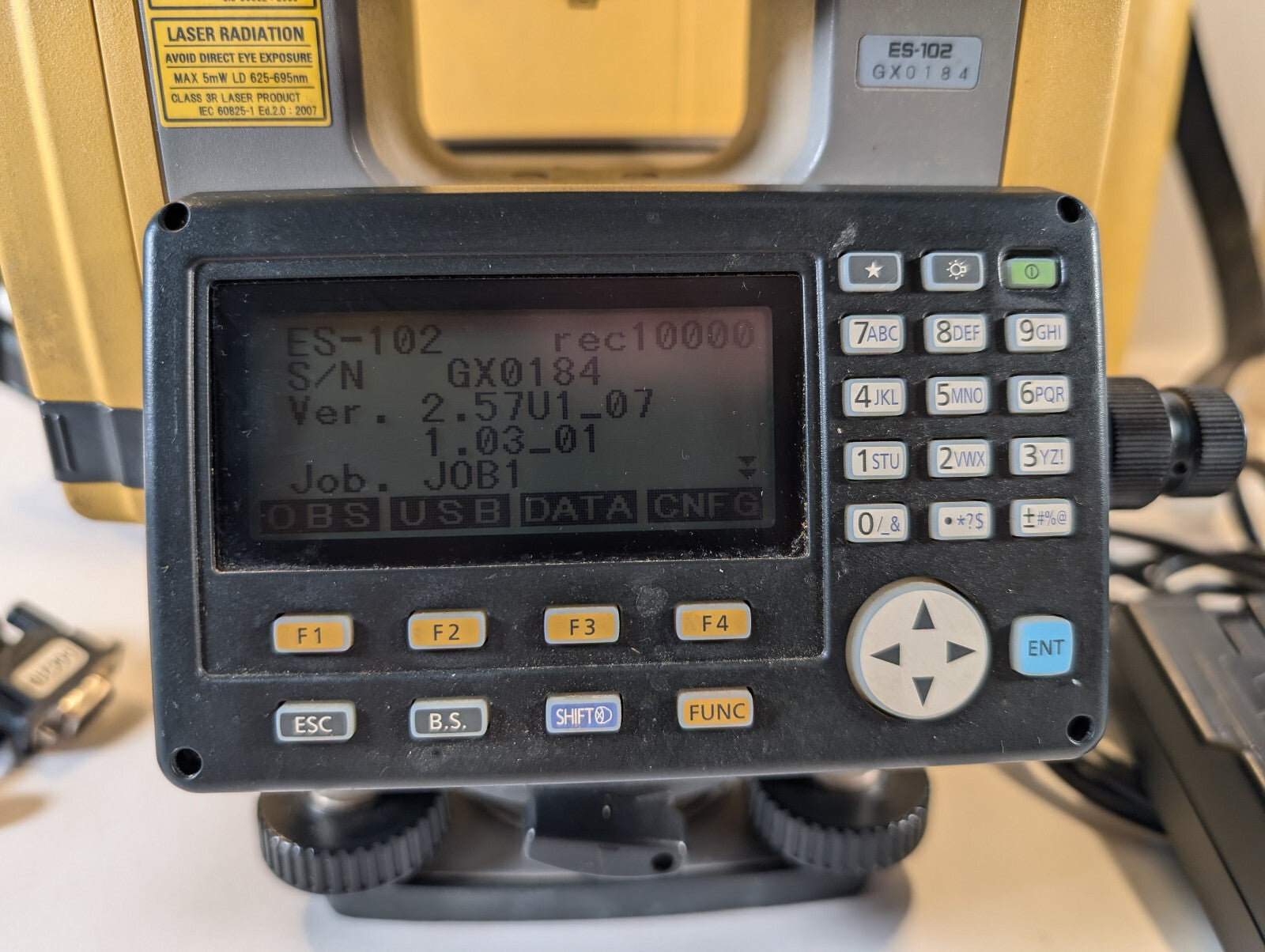

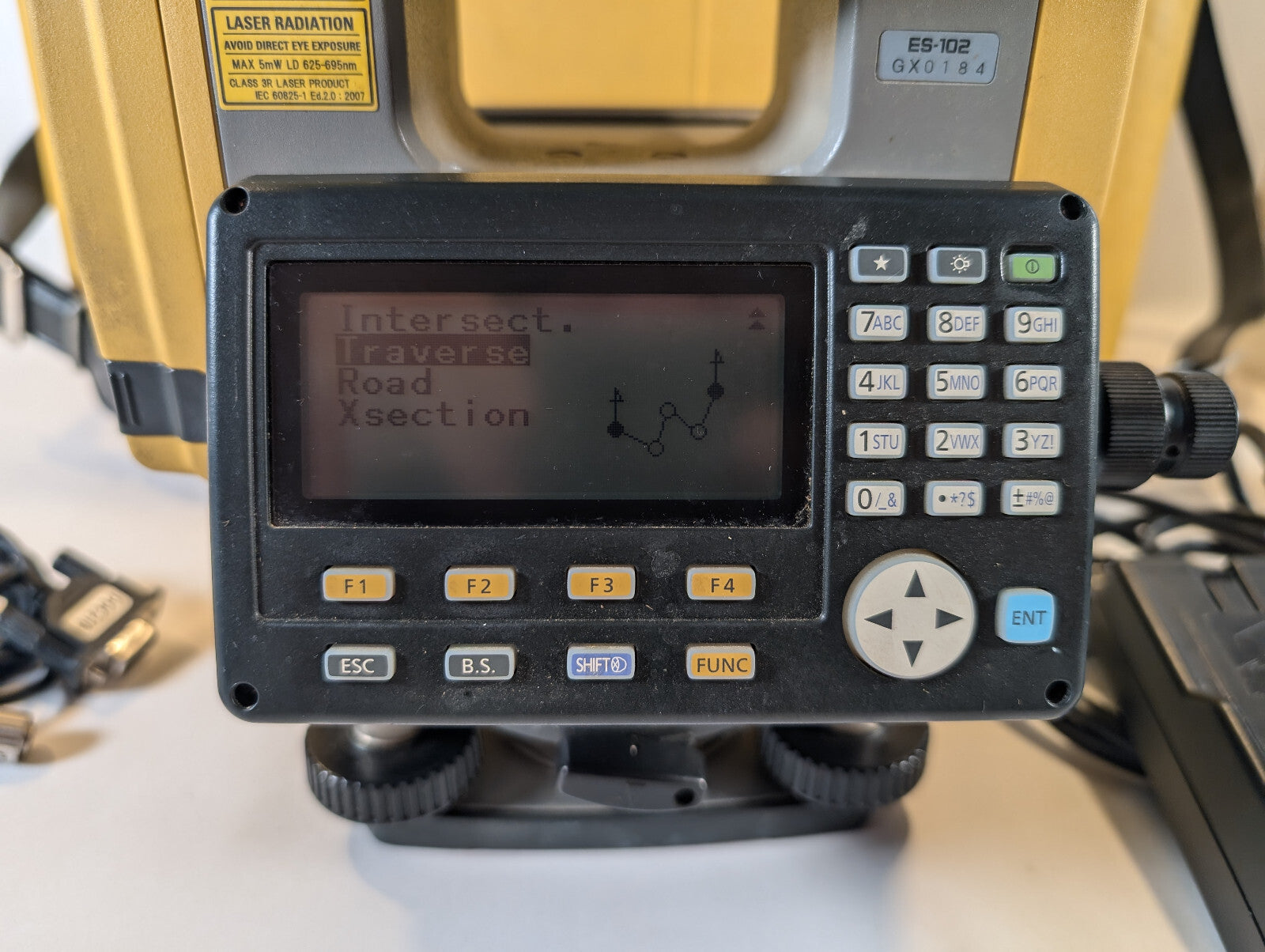

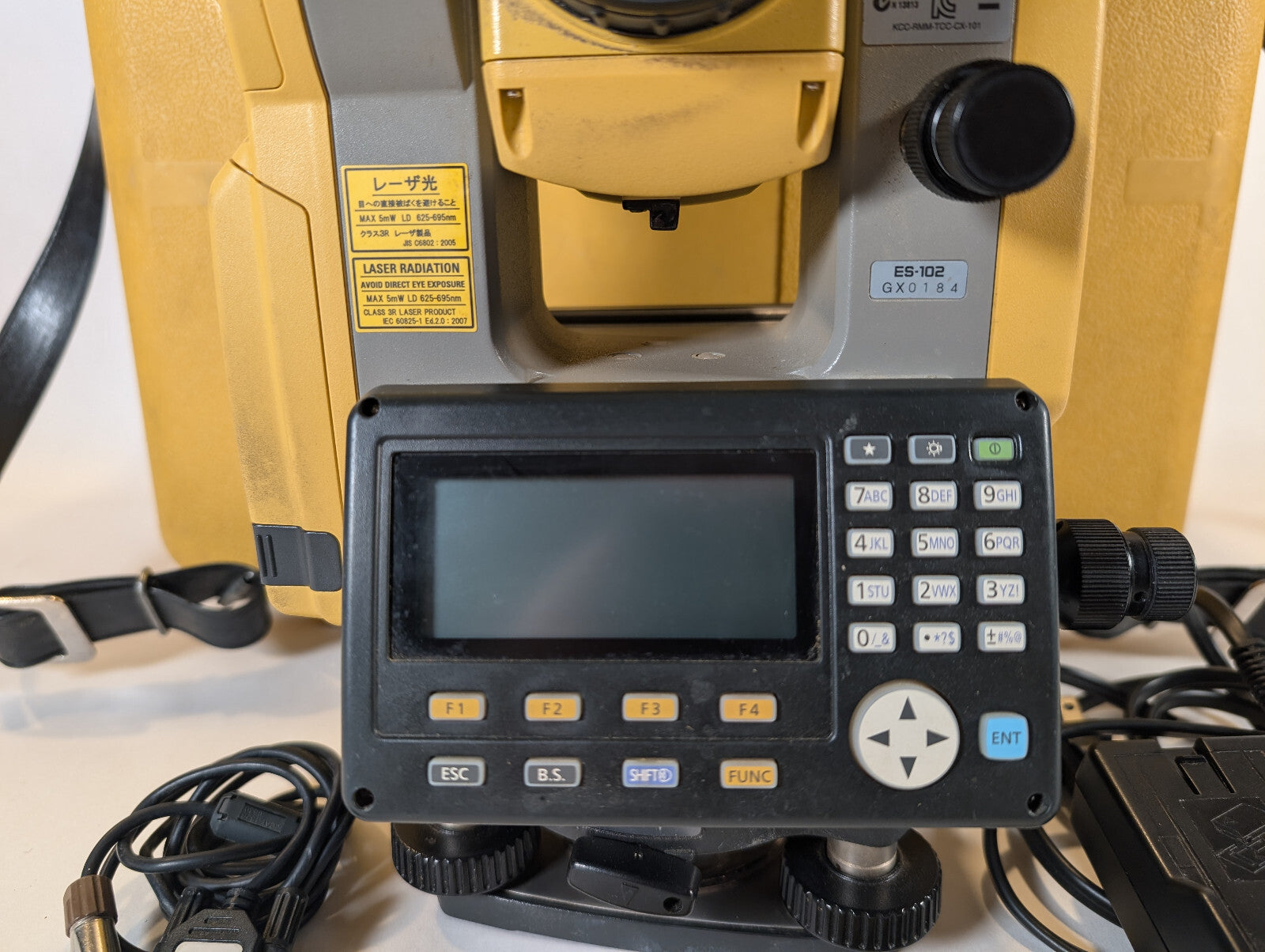

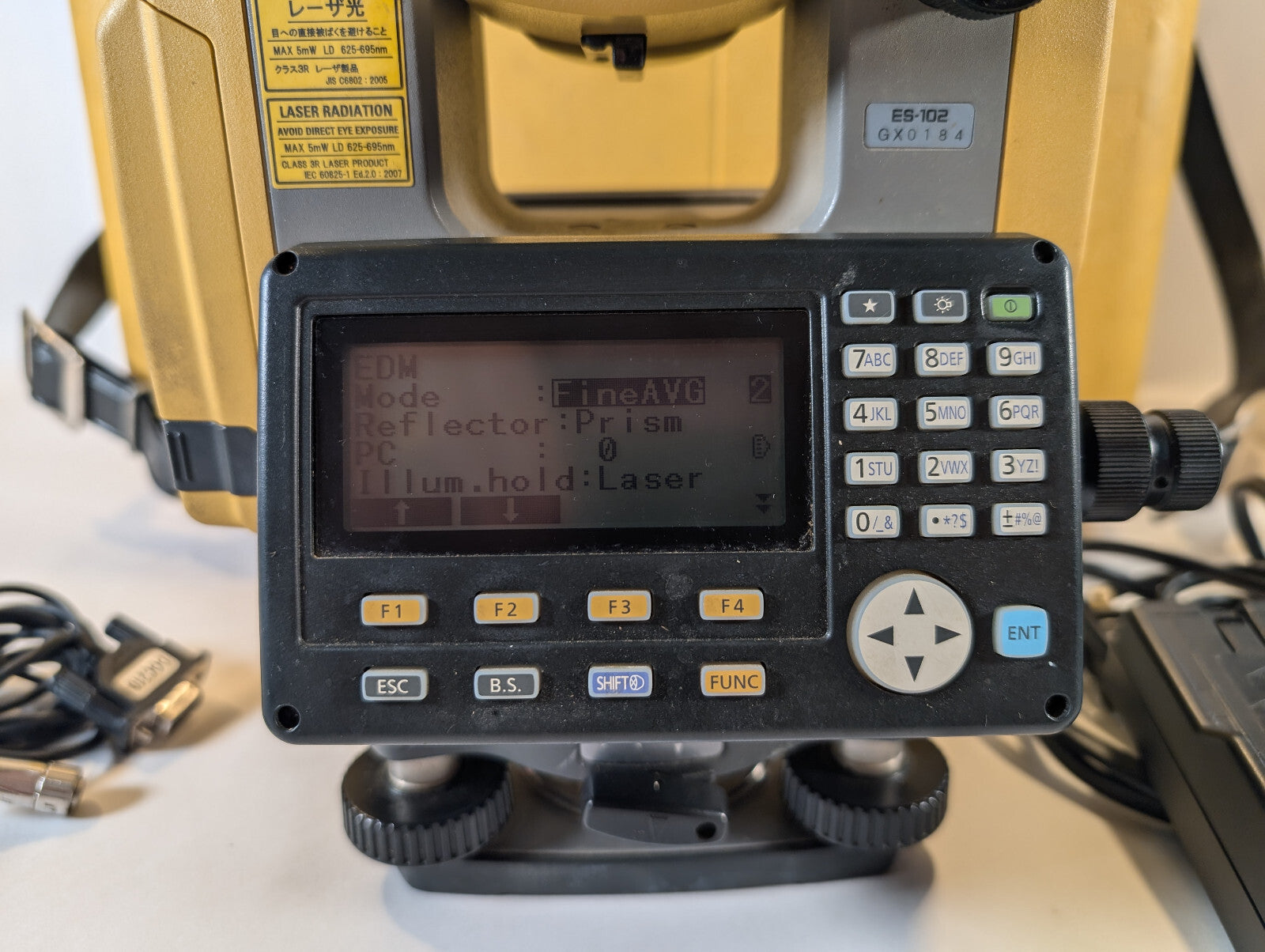

• Control panel consists of 10-key pad (with alphabet entry) with LCD for easy viewing.
• Green/Red Guide Light is built into the telescope as a standard feature, enhancing setting-out work efficiency in range of 1.3 to 150m.
• Trigger key is ergonomically placed so that measurement can be taken at any time with just the push of a button.
• Trigger key is ergonomically placed so that measurement can be taken at any time with just the push of a button.
| ES-102 Specifications | |
| Telescope | |
| Magnification / Resolving power | 30x / 2.5" |
| Others | Length: 171mm (6.7in.), Objective aperture: 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30' (26m/1,000m), Minimum focus: 1.3m (4.3ft.), Reticle illumination: 5 brightness levels |
| Angle Measurement | 1" / 5" |
| Display resolution | 0.5" / 1" (0.0001 / 0.0002gon, 0.002 / 0.005mil) |
| Accuracy (ISO 17123-3:2001) | 2" |
| Dual-axis compensator / Collimation compensation | Dual-axis liquid tilt sensor, working range: ±6' (±111mgon) / Collimation compensation available |
| Distance measurement | |
| Laser output | Reflectorless mode: Class 3R / Prism/sheet mode: Class 1 |
| Measuring range (under average conditions ) | |
| Reflectorless | 0.3 to 500m(1.0 to 1,640ft.) |
| Reflective sheet | RS90N-K: 1.3 to 500m (4.3 to 1,640ft.), RS50N-K: 1.3 to 300m (4.3 to 980ft.), RS10N-K: 1.3 to 100m (4.3 to 320ft.) |
| Mini prisms | 1.3 to 500m (1,640ft.) |
| One prism | 1.3 to 4,000m (4.3 to 13,120ft.) / Under good conditions *6 : 1.3 to 5,000m (16,400ft.) |
| Three prisms | to 5,000m (16,400ft.) / Under good conditions *6 : to 6,000m (19,680ft.) |
| Display resolution | Fine/Rapid: 0.001m / 0.01ft. / 1/8in. Tracking: 0.01m / 0.1ft. / 1/2in |
| Accuracy (ISO 17123-4:2001) (D=measuring distance in mm) | |
| Reflectorless | (3 + 2ppm x D) mm *7 |
| Reflective sheet | (3 + 2ppm x D) mm |
| AP/CP prism | (2 + 2ppm x D) mm |
| Measuring time | Fine: 0.9s (initial 1.7s), Rapid: 0.7s (initial 1.4s), Tracking: 0.3s (initial 1.4s) |
| Interface and Data management | |
| Display / Keyboard | Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 25 keys with backlight |
| Control panel location | On both faces |
| Trigger key | On right instrument support |
| Data storage | Internal memory - Approx. 10,000 points Plug-in memory device - USB flash memory (max. 8GB) |
| Interface | Serial RS-232C, USB2.0 (Type A, for USB flash memory) |
| Bluetooth modem | Bluetooth Class 1, Ver.2.1+EDR, Operating range: up to 300m (980ft.) *11 |
| General | |
| Laser-pointer | Coaxial red laser using EDM beam |
| Guide light | Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.) |
| Levels | Graphic - 6’(inner circle) Circular level - 10' / 2mm |
| Optical plummet | Magnification: 3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom |
| Dust and water protection | IP66 (IEC 60529:2001) |
| Operating temperature | -20 to +60°C (-4 to +140°F) |
| Size with handle | Control panel on both faces: W191 x D181 x H348mm (W7.5 x D7.1 x H13.7in.) Control panel on one face: W191 x D174 x H348mm (W7.5 x D6.9 x H13.7in.) |
| Weight with battery & tribrach | Approx. 5.6kg (12.3 lb.) |
